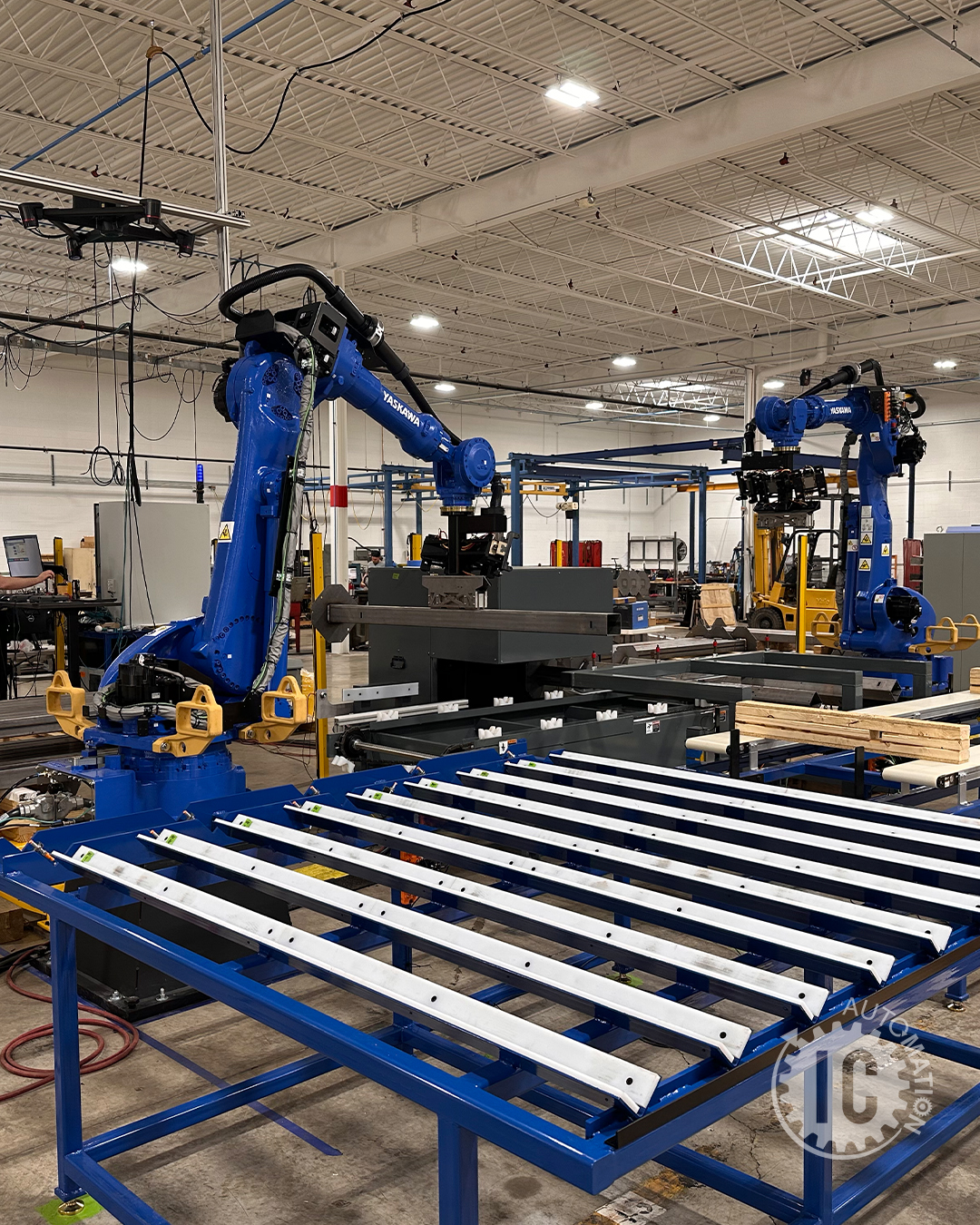

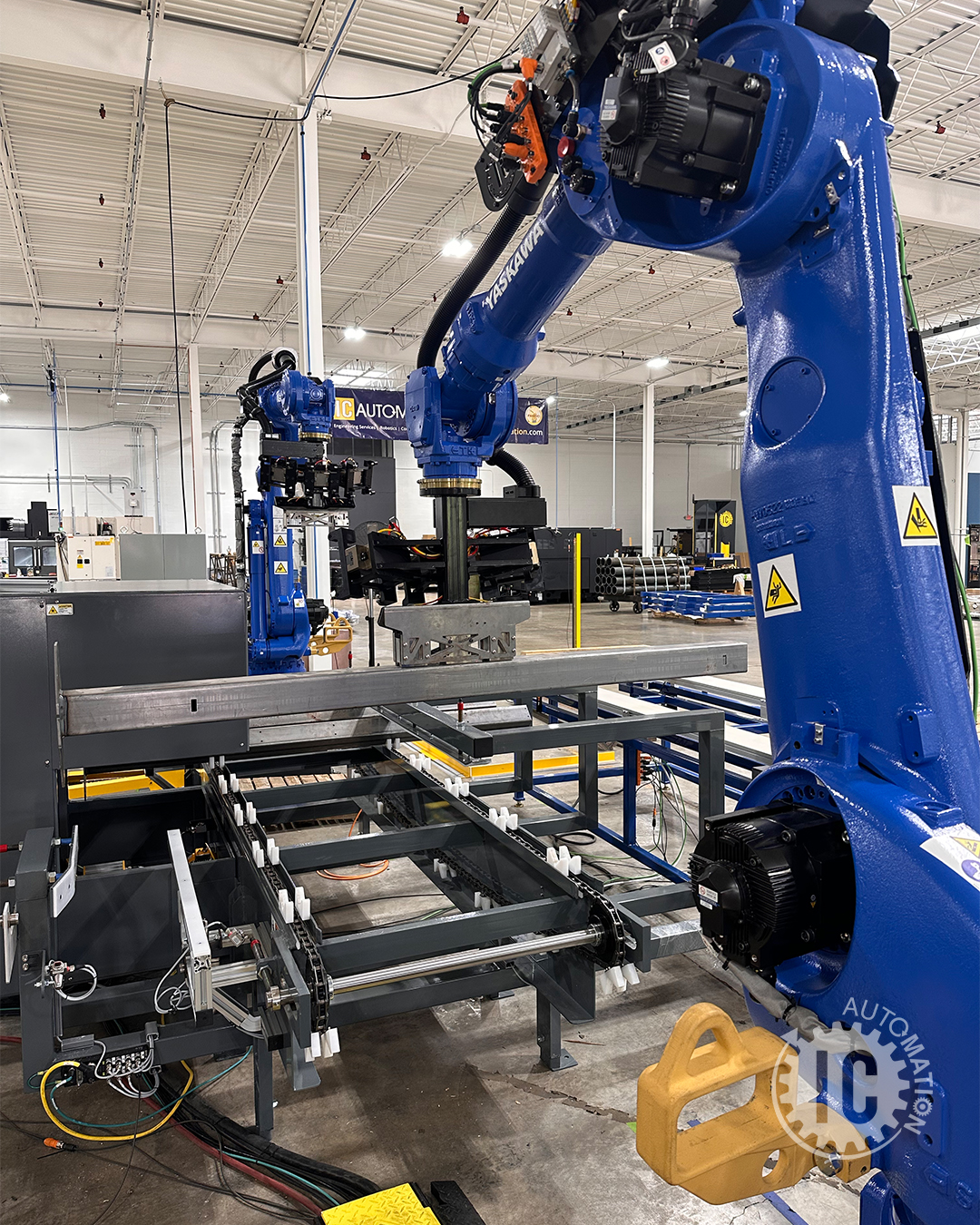

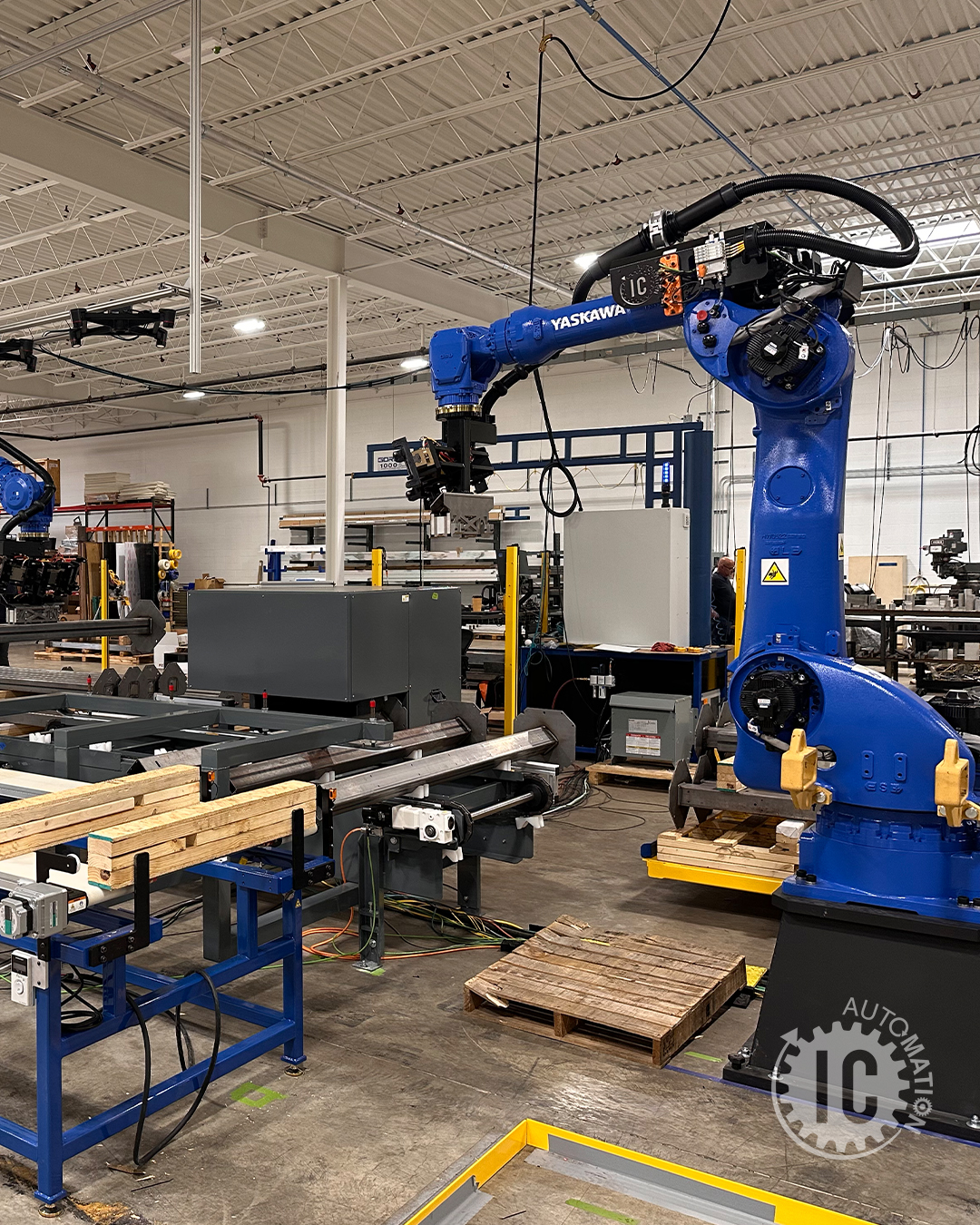

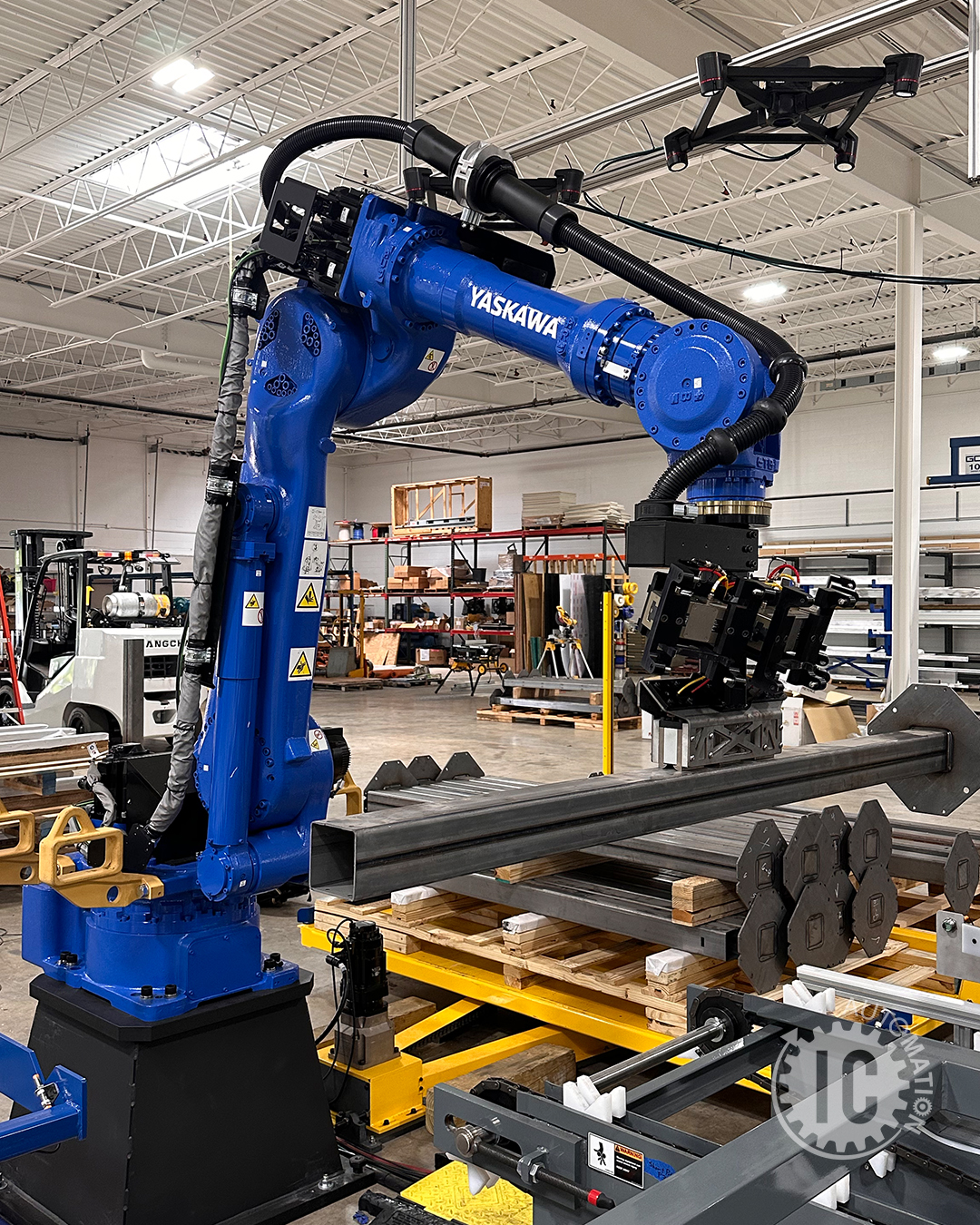

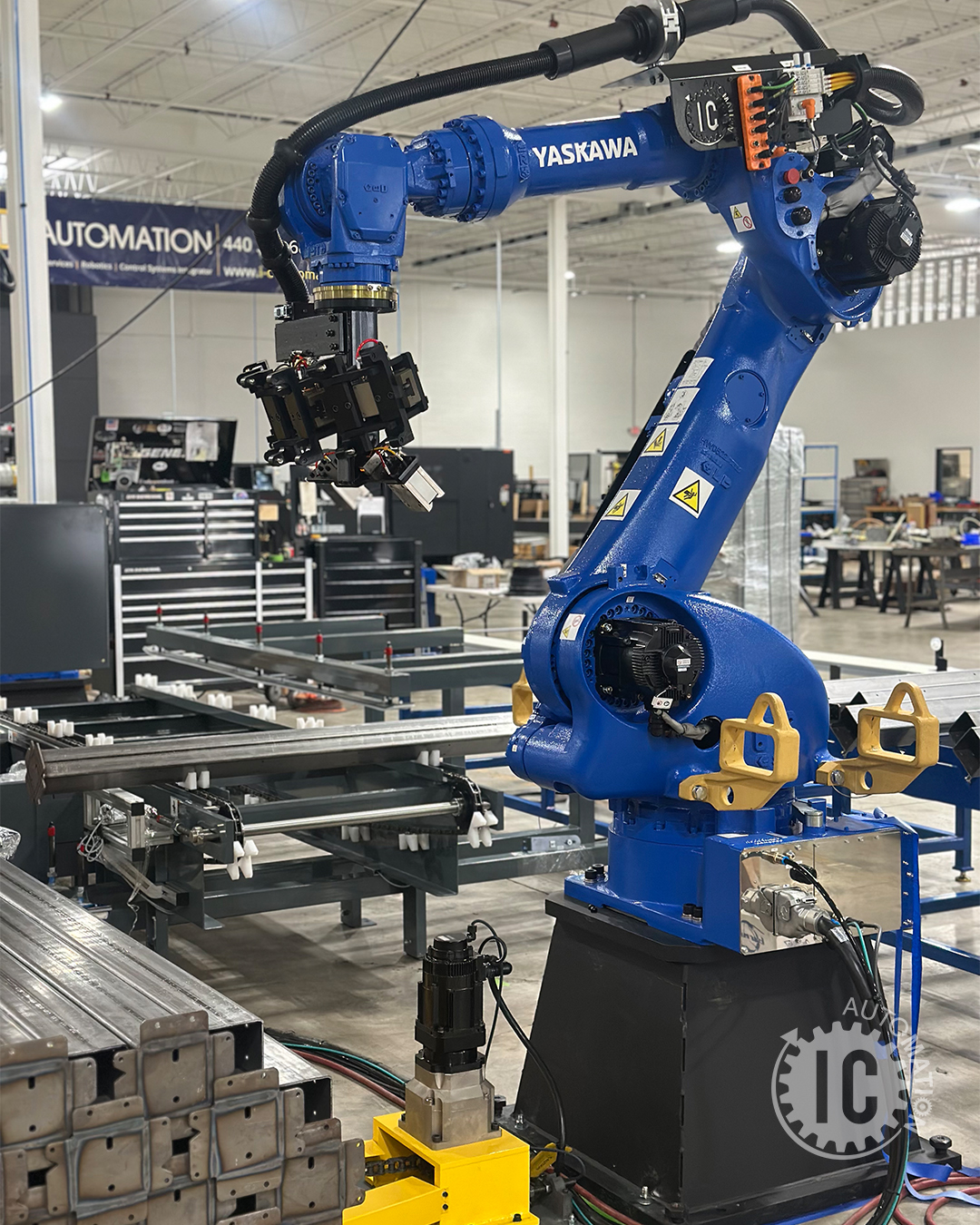

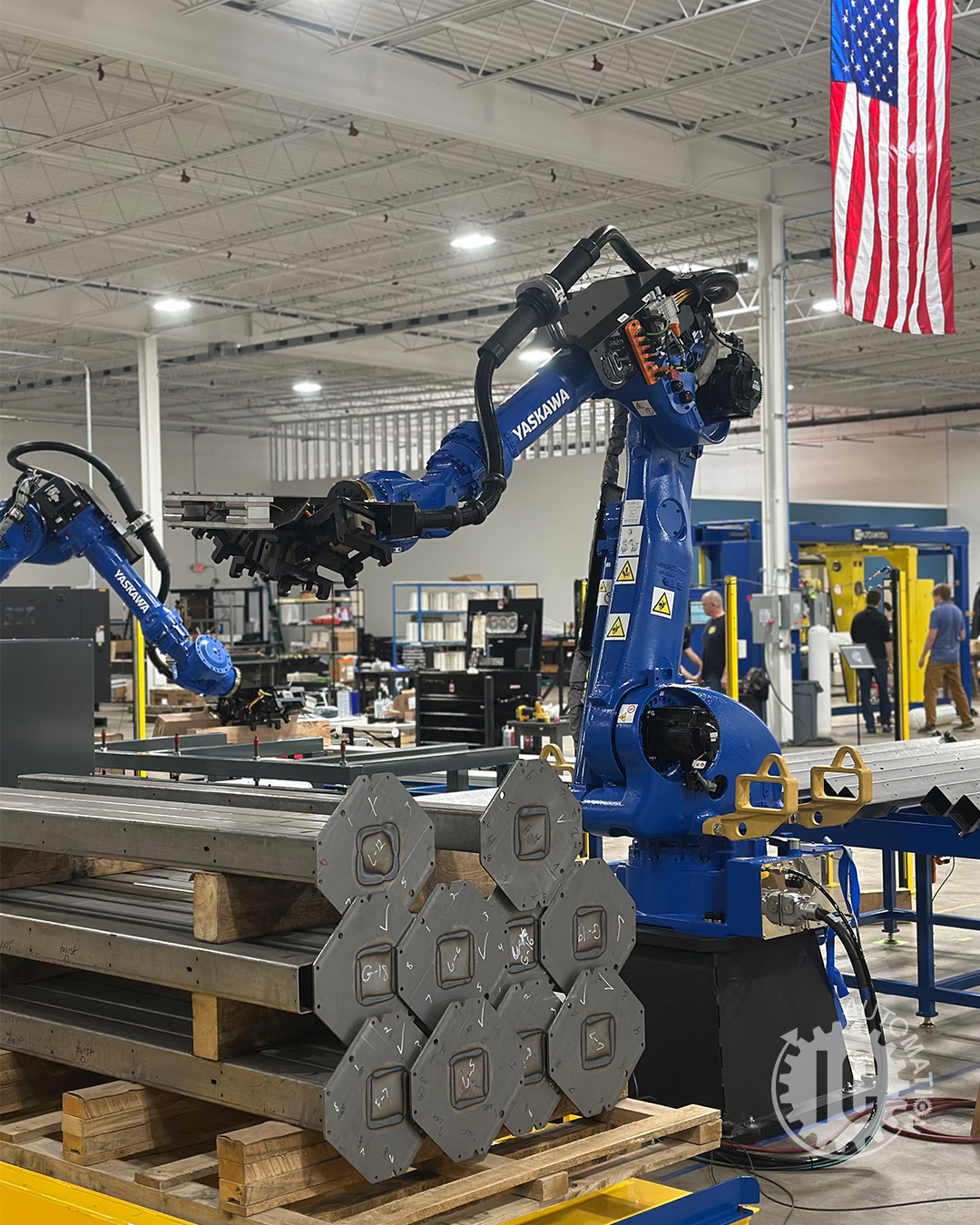

The process begins with a pallet of welded tube steel posts entering the cell, where a Keyence 3D vision system automatically identifies each part’s location, orientation, and pickable surfaces. A robotic depalletizing system then transfers each weldment onto a precision indexing conveyor, ensuring consistent positioning before entering the enclosed inspection chamber. This automated handling process minimizes manual intervention while maintaining reliable part flow throughout the system.

Inside the inspection chamber, advanced 3D metrology verifies critical product characteristics, including weld quality, dimensional accuracy, base plate alignment, perpendicularity, and overall part geometry. Every component receives a complete digital inspection record, providing consistent quality verification and improved traceability. Once inspection is complete, a second robot automatically repalletizes accepted parts while rejected components are separated for review. The system also automates the handling of wooden layer separators, reducing additional operator involvement and supporting continuous production.

Designed for manufacturers requiring dependable inspection and material handling, the Automated Weldment Inspection Cell delivers a repeatable pallet to pallet automation solution that improves throughput, reduces labor requirements, and enhances product quality. By combining intelligent vision guidance, robotic automation, and precision inspection into a single integrated system, IC Automation provides a scalable solution that helps manufacturers improve productivity while maintaining the highest quality standards.
